Product Details:
|
| Dimension (H*W*D)(mm): | 810* 511*1685 | Input Frequency (Hz): | 50 /60 Hz |
|---|---|---|---|
| Output Voltage Range (V): | 200-750VDC | Max. Output Current (a): | 100A |
| Cable Length: Charger Gun: | 5m (CCS2), Customized Acceptable | Measuring And Accounting: | Time-sharing Accounting |
| Running Indication: | Power Supply, Charging, Fault | ||
| High Light: | 60kw Commercial Electric Car Charging Points,DC Commercial Electric Car Charging Points,5m Cable Electric Car Charging Points |
||

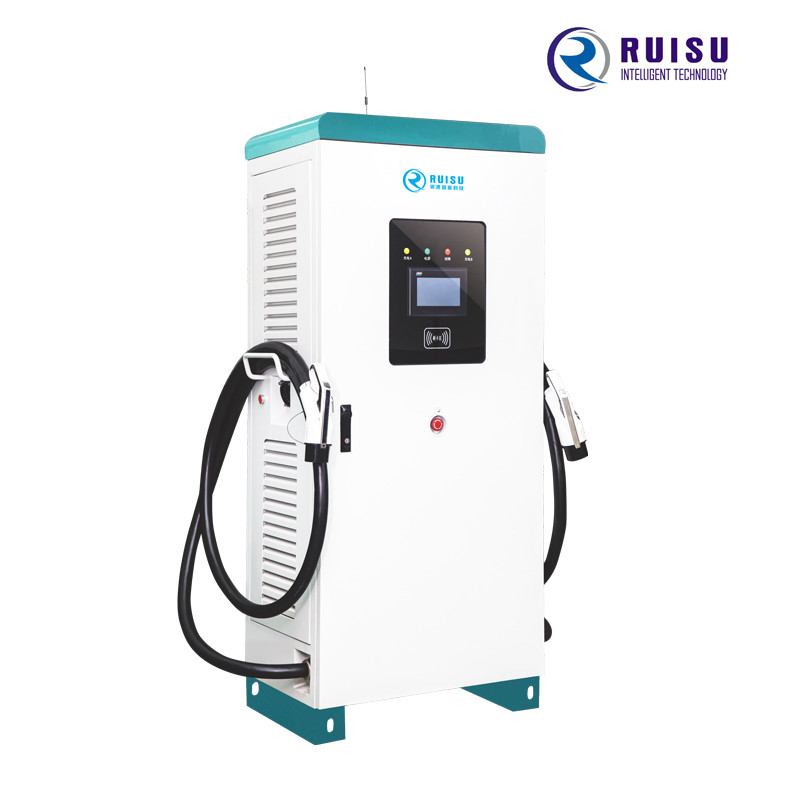

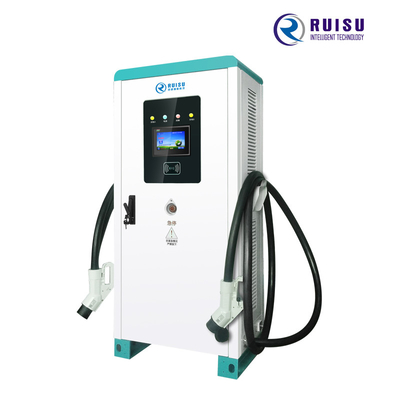

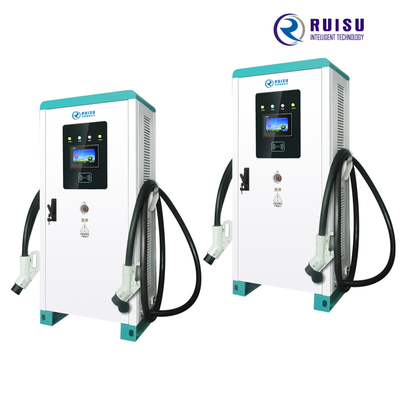

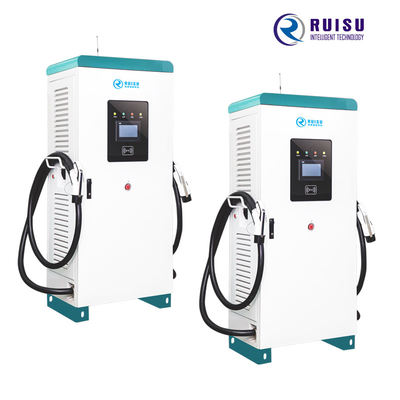

60kw EV Charging Station All in one DC Electric Vehicle Charging Pile Fast Charger
Advantages:
1. Meet the charging requirements of all models of electric vehicles with different powers and dynamically match the charging power required by the electric vehicles connected to any terminal.
2. Equip intelligent charging module, which has the advantages of high power, outstanding efficiency, low harmonics, and high intelligence.
3. Dynamically allocate the charging power according to the charging demand from the BMS of the charging vehicle to ensure charging safety.
4. Standard 4G communication module; charging operation swipe card / scan code; payment method: RFID card / WeChat/Alipay.
5. Have two chargers in standard configuration, but optionally have single charger.
Technical Parameters:
| Product Type | RSDC 60KW DC Charge |
| Product Model | RSDC1000-60KW |
| Dimension (H*W*D)(mm) | 810* 511*1685 |
| Display Mode | LED Display |
| Input Voltage | 380VAC, 1 phase + N+PE |
| Output Power (KW) | 60 |
| Input Frequency (HZ) | 45~55Hz |
| Output Voltage (V) | 200-1000Vdc |
| Max. Output Current (A) | 0-250 |
| Length of Charging Gun (m) | 5 |
| Electric Leakage Protection (mA) | 30 |
| Human-machine Display | 7" Color Screen |
| Charging Operation | Swiping card / scanning code |
| Measuring and Accounting | Time-sharing accounting |
| Running Indication | Power supply, charging, fault |
| Heat Dissipation Control | Natural cooling |
| Protection Function | Lightning protection, over-load, short-circuit over-temperature, electric leakage, emergency stop protection etc |
| Charging Selection | Self-provided, timing, quantitation, fixed fee, appointment etc. |
| Payment Method | RFID card, WeChat Official Account, Alipay |
| Communication Interface | CAN with standard configuration, Ethernet, RS485, RS232, GPRS |
| Protection Grade / Shell Material | Outdoor IP54 / sheet metal shell |
| Optional | Install the bracket when landing; hanger |
| Product Introduction | 1.60KW Intergrated charger is capable of running status monitoring, fault monitoring, charging measuring and accounting, remote control during charging and other functions; 2.Humanized operation: the charging, accounting and other operations can be realized on phone APP; 3.Reliable material: sheet metal shell is adopted to make it can be used outdoor and resist against complex climate And environment, with the waterproof and dust-proof grade up to IP54; 4.Safe and stable: it's capable of lightning protection, over-load, short-circuit, electric leakage protection; |
